Click any image below to enlarge.

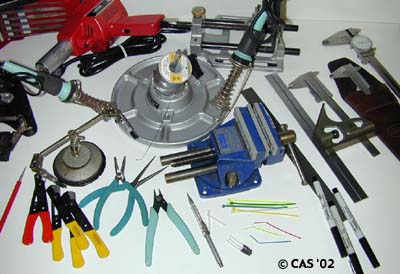

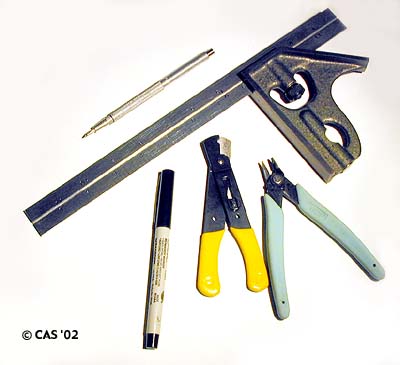

Some Of The Tools We Use

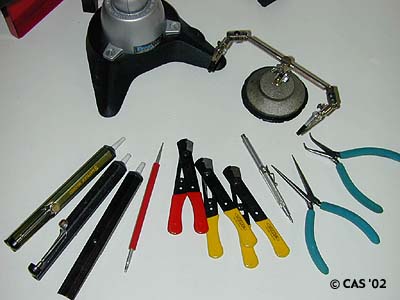

A Different View
Measure and Mark

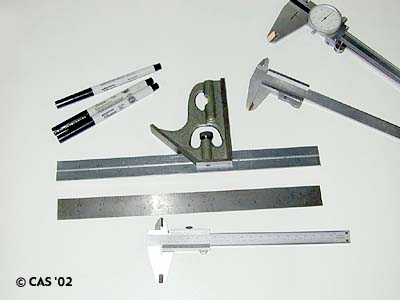

Assorted Calipers, Rulers, Square

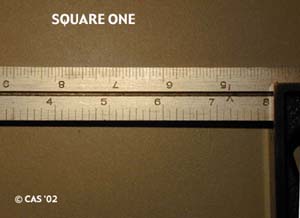

Rule, As On Machinist's Square

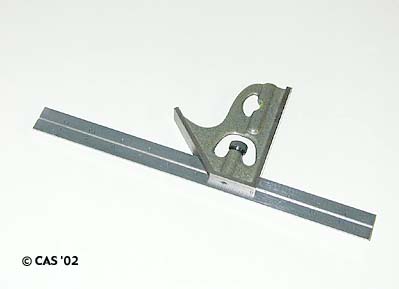

Machinist's Square

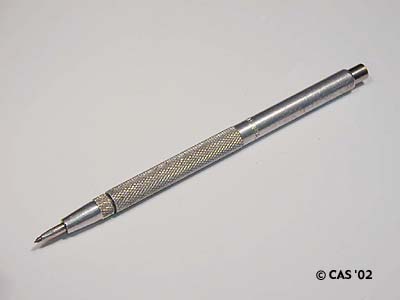

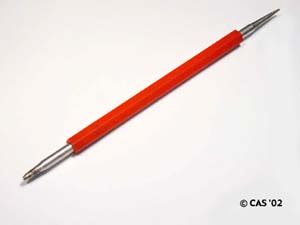

Scribes

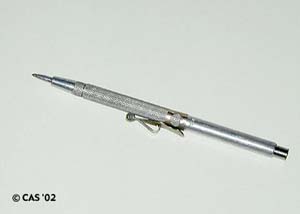

Carbide Tip Scribe - Opens Shield, ALL Types
Also great for widening Teflon tubing.
Using scribe as intended -to mark, w/ calipers, also used as scribes.
Cutters / Strippers
Note Cutters, Lower Right
Wire strippers, also used as cutters.

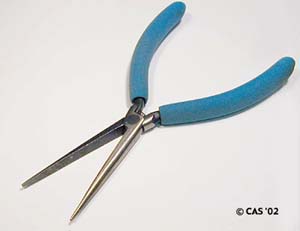

Straight Needle Nose Pliers
For Wire Bending, Dressing,Stripping
Vises / Clamps

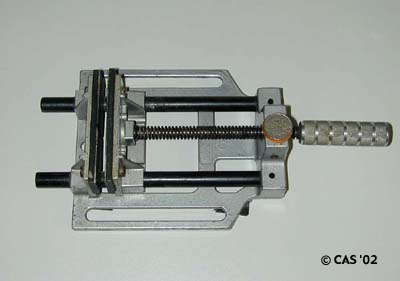

Machinist's Vise: Non-Marring

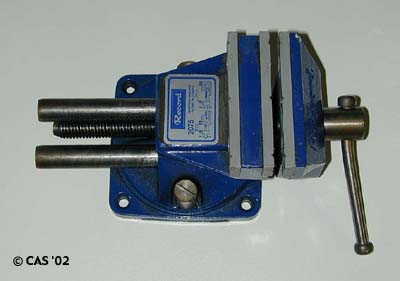

Machinist's Vise: All Metal
Alligator Clamp Stand 1

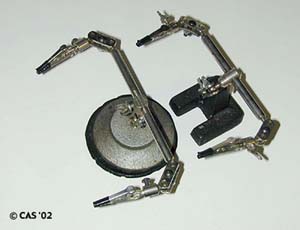

Alligator Clamp Stands

Solder Pencils /
Solder Pot

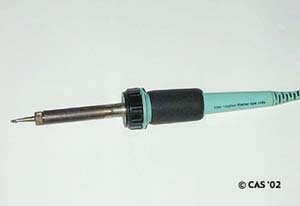

Soldering Pencil

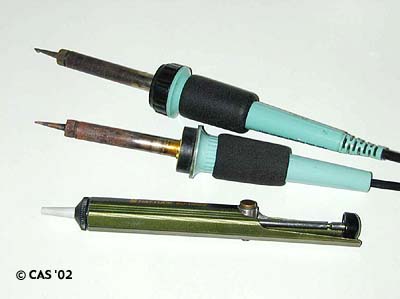

Soldering Pencils/Solder Remover

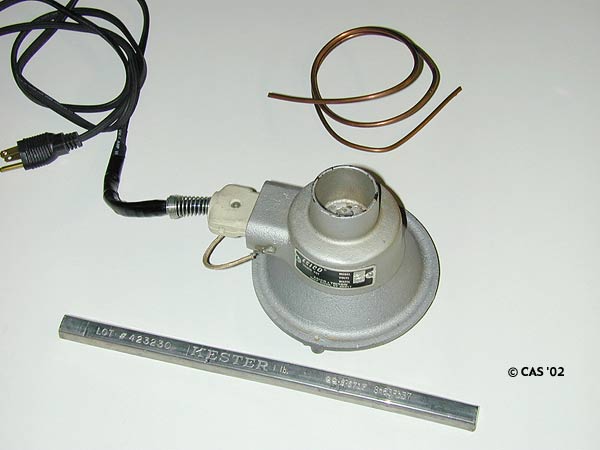

Solder Pot-For 4 or More Bays

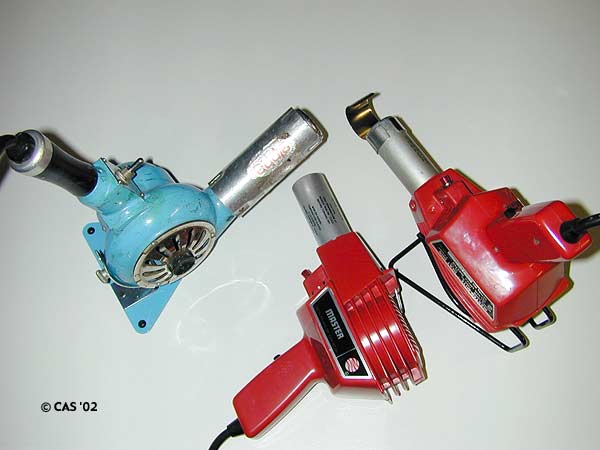

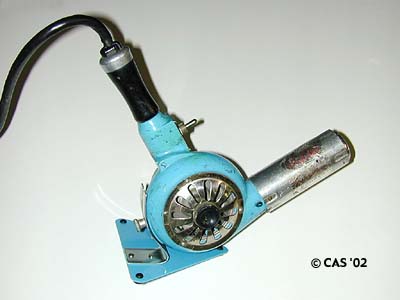

Heatshrink Guns
Heatshrink Gun
Heatguns And Stands
High capacity heat gun on stand.
