PT. 2 Before Soldering Wires Ready To Solder To Jacks A different view.



Click any image on page to enlarge
.

From the previous page, Completed, and the steps - 1, 2, 3, 4.
showing multiple normal wires.

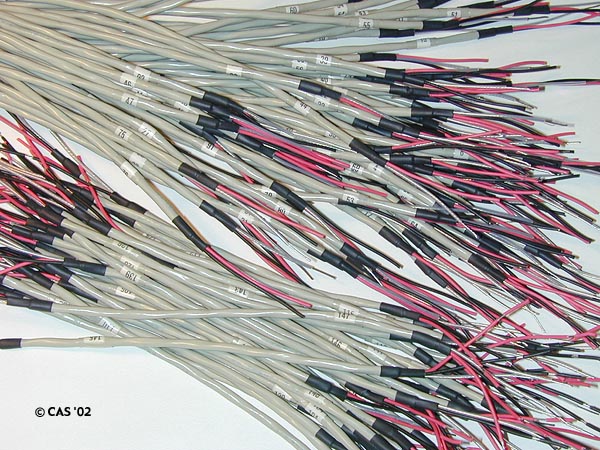

Closer... Click for an even closer look!

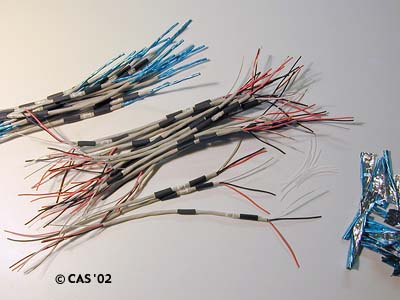

Normals Being Prepped
View 2
View 3
View 4

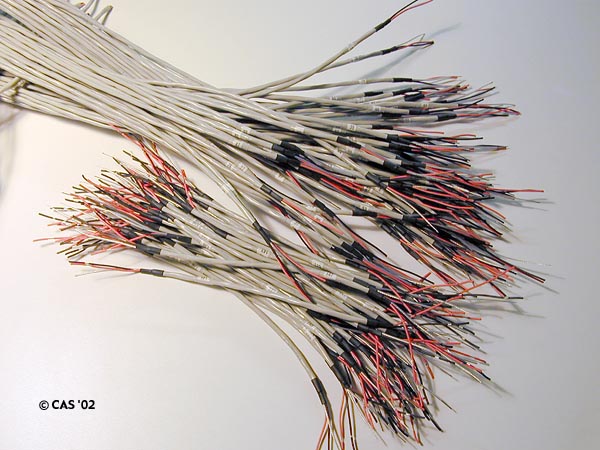

All the wires done, ready for the next step.
The Normals:
Mogami™
, and then back to Belden™ Beldfoil, type.
But First....Making Normals

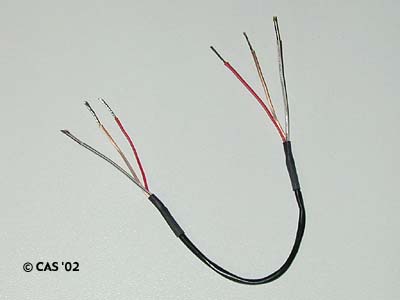

Completed Mogami™ Normal
Closer Look
A Few Mogami Normals
Normals: Belden™ Beldfoil type.
L=12", marked 2-1/2", to be stripped.

Step 1 - Mark jacket at 2.5", to be stripped.
Step 2 - Jacket Stripped

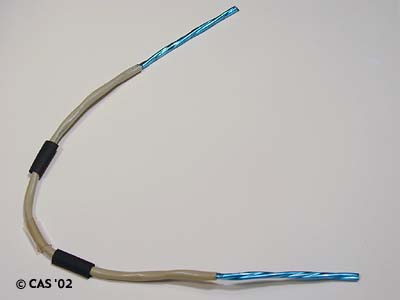

Step 3 - Foil Shield Removed
4 - Teflon placed on drain wire.

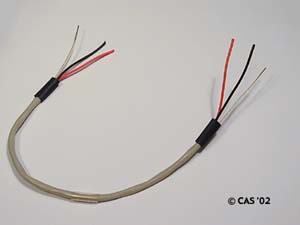

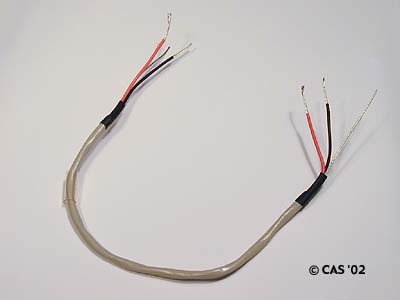

Completed, with 3/16" heatshrink at ends.
Now to put it all together..

Click HERE to see the next step. The soldering to bantam jacks.
