This rack may be considered the "central nervous system" of a very comprehensive effects device routing system, providing 26 channels, via a mixing console's effect sends/returns/channels as returns. Additional racks of devices are needed for this many channels, but not with any additional wiring other than I/O interconnects to those in either TRS/ XLR or Elco/ EDAC multi-pin configuration.

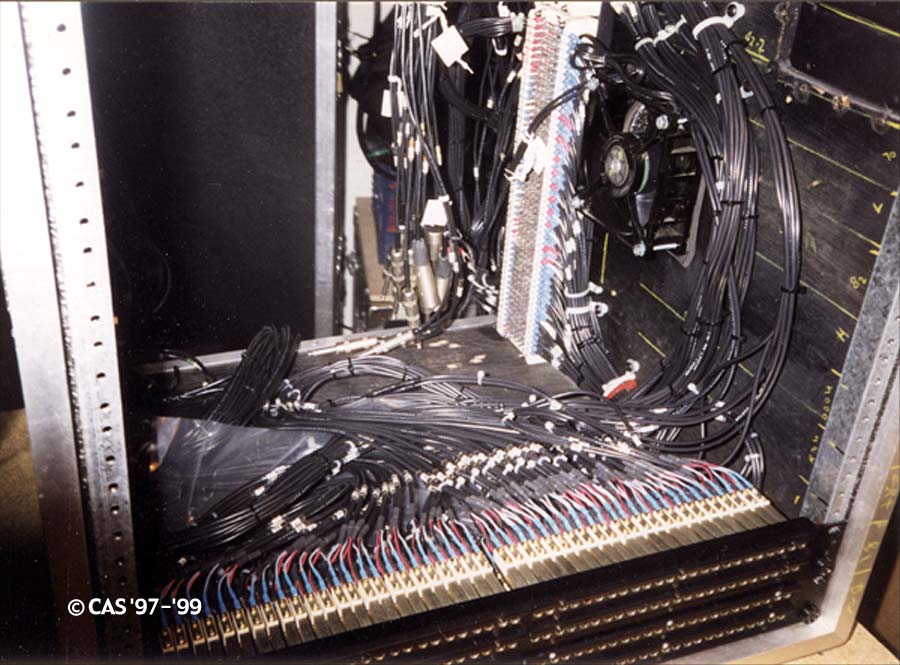

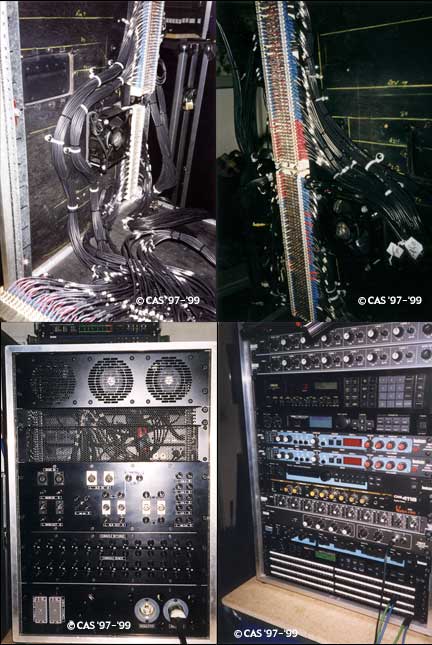

"The INSIDE View 1"

Please click either image to enlarge.
The image will take a bit of time to load if not on high speed connection,
but will show extensive detail.

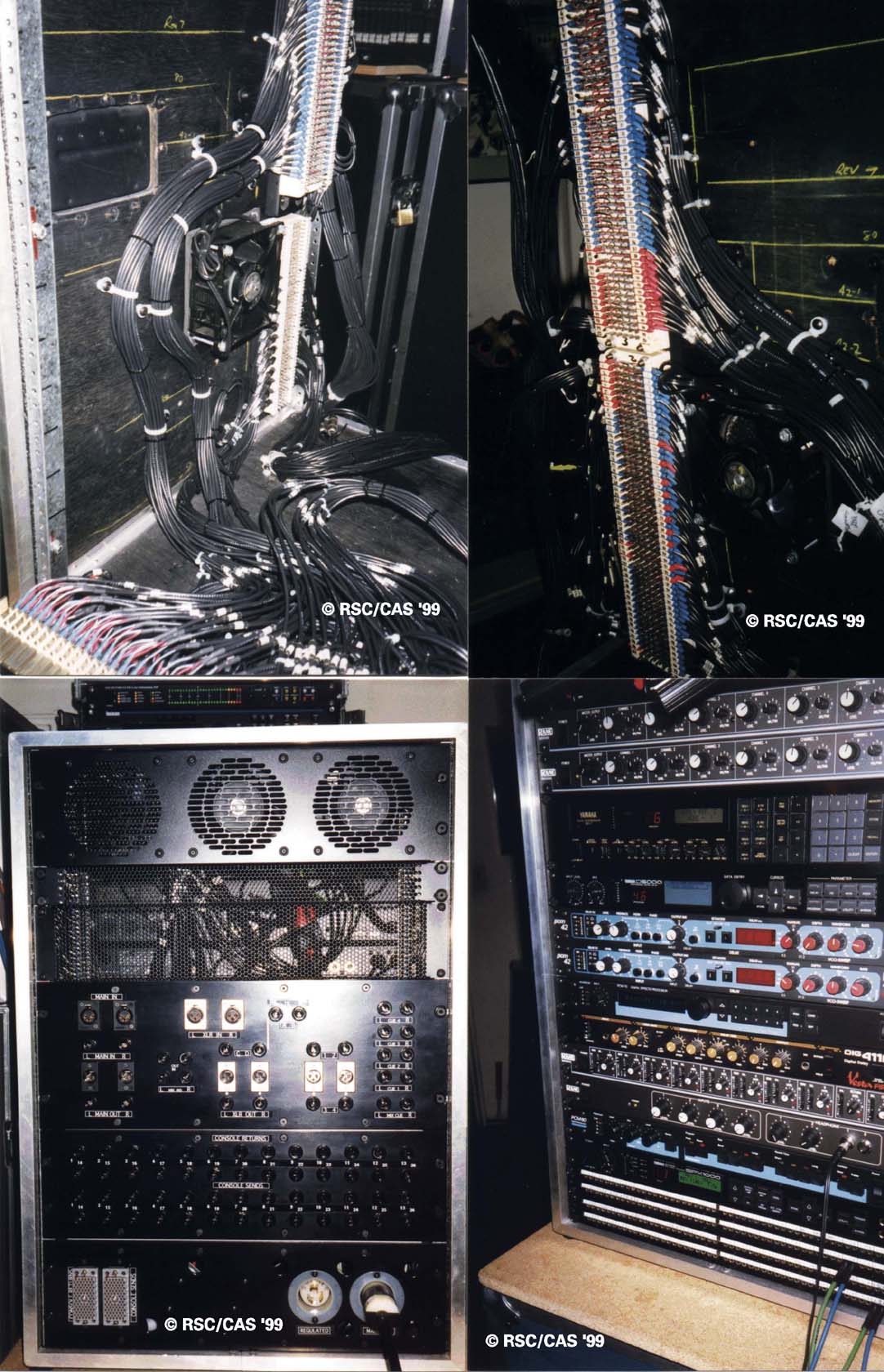

Rack, as above, prior to loading-"The INSIDE View 2"
