Wire and Tubing  Mogami™ Serve Shield   Belden™ Beldfoil Foil Shield

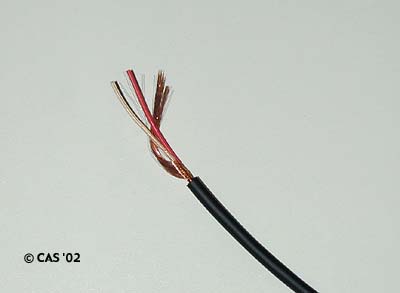

Mogami™ Style "Serve" Spiral Shield

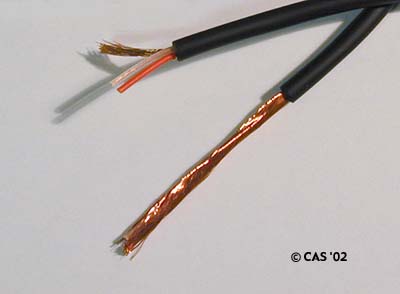

Spiral "Serve" Shield - View 1
View 2
View 3

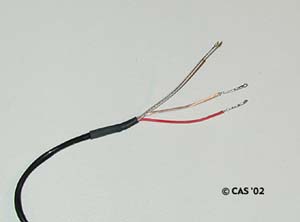

Completed Wire - Ready To Solder
Click HERE To View Mogami™ Normals - The Steps

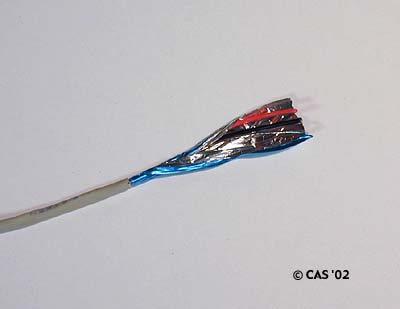

Belden™ Style "Beldfoil"
Foil Shield

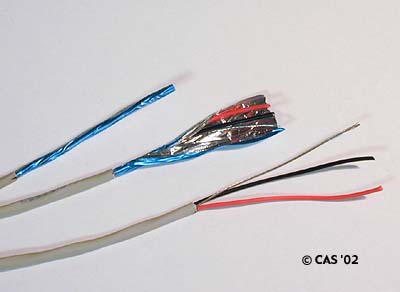

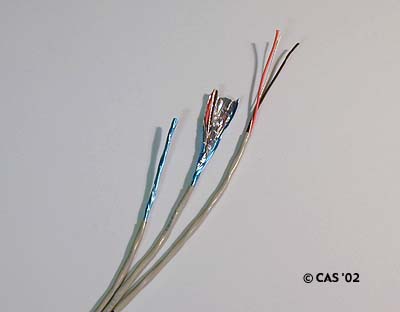

Foil Shield Strip Process
View within unwrapped foil.
3 steps....to next step.

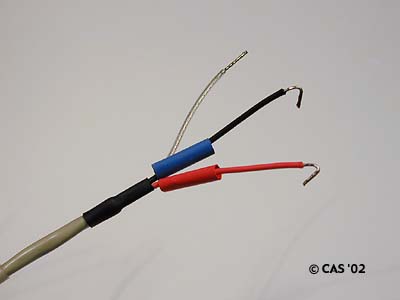

Down the road and ready to connect.
Click HERE To View Foil Wire Preparation. We will be primarily using foil shielded wire in this lesson.

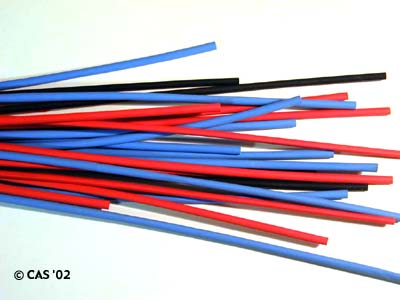

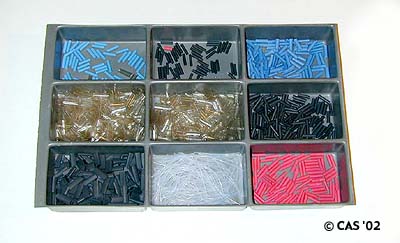

Heatshrink: For many things- covering soldered tabs (1/8" or 3/16"), terminating stripped jacket ends, label ID covering and more.

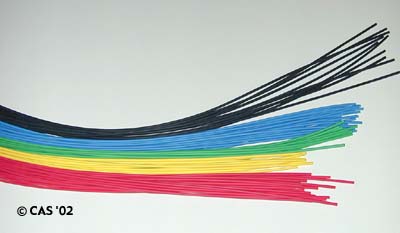

Heatshrink - 3/16"
Heatshrink - 1/8"

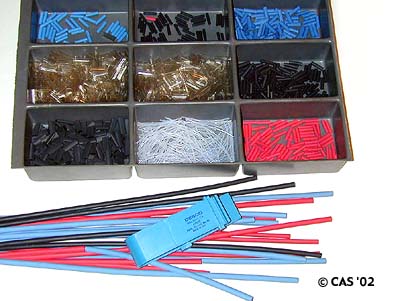

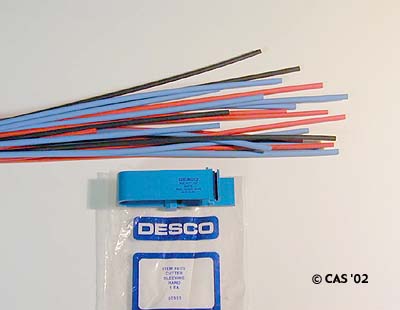

Desco™ Little Joey © cutter w/ tubing.
Heatshrink,Teflon w/ Cutter
Cut Tubing

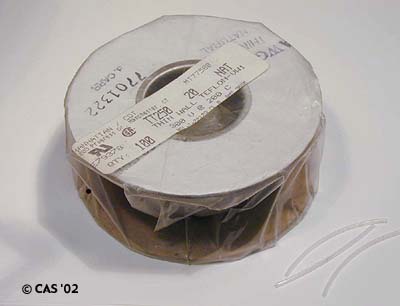

Teflon Insulation Tubing:
For covering the Drain (Shield) Wire.
Use 1 Size Larger than "Drain" Wire.

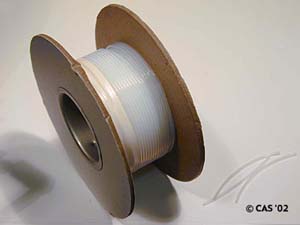

Teflon Tubing - 20AWG For 22AWG Wire
Also Called "Thin Walled Teflon"

Click HERE to view the use of Teflon tubing.
