Assembling PT.1 Using Scribe To Open Foil Shield  Completed "Single' Wires



Click any image on page to enlarge.
From Raw Wire to Ready
Single (or breaking) wires w/ jacks.
"Mult" Wires - 2 Pairs Share Same Solder Tabs

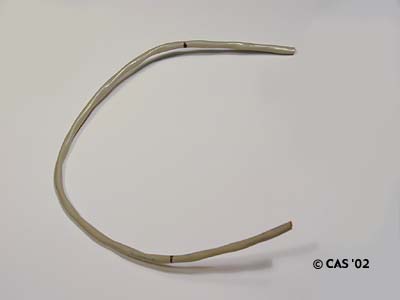

1- Mark, Cut and Strip
Click to enlarge to see markings-2.5".

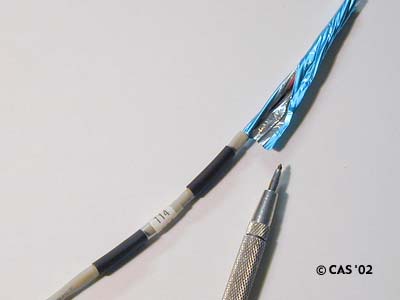

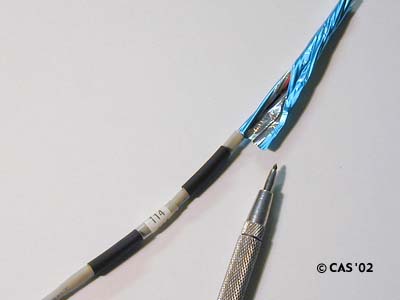

Scribe To Open Foil Shield - Step 1

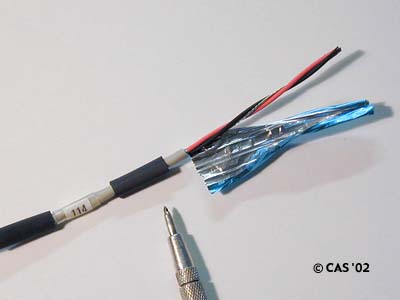

Step 2

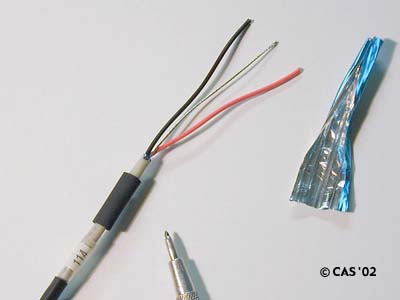

Step 3
1, 2, 3
2- Teflon

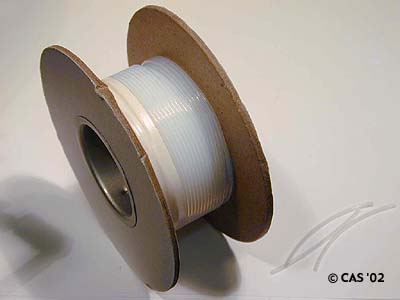

Teflon tubing - Use the next size larger than the drain wire.
In this case, use 20AWG Teflon for 22AWG wire.

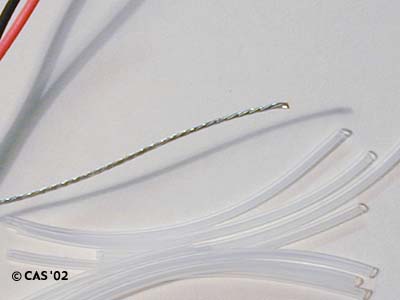

Cut Teflon Pieces To Go Over Drain Wire

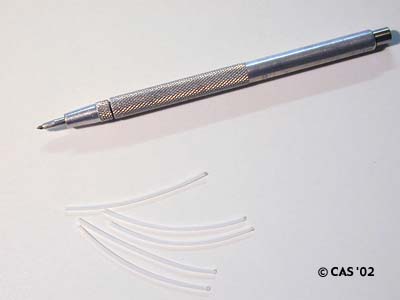

Scribe's carbide tip to widen teflon tube ends.

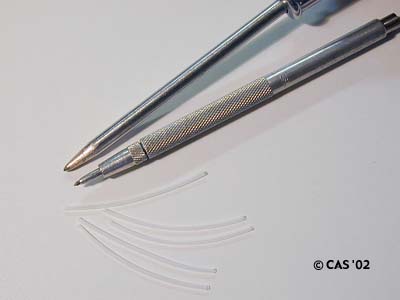

If no scribe, awl will do.

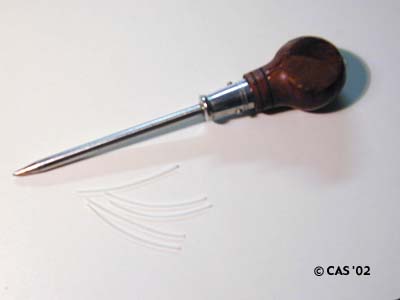

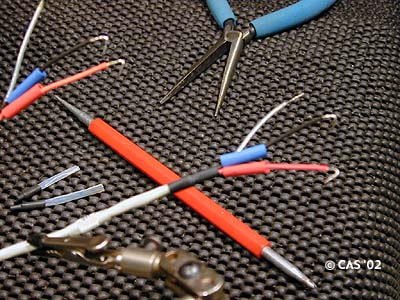

Awl w/Teflon

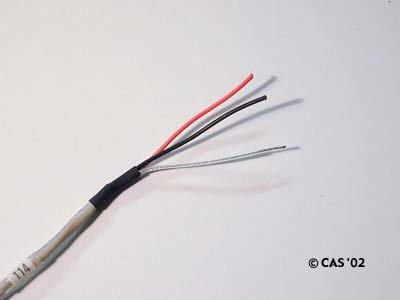

Placing Teflon on drain wire.

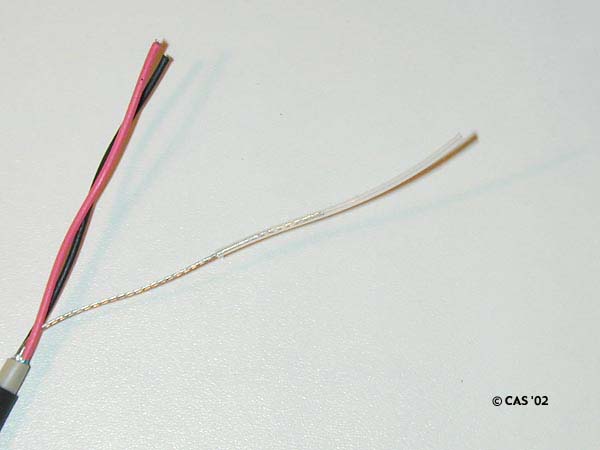

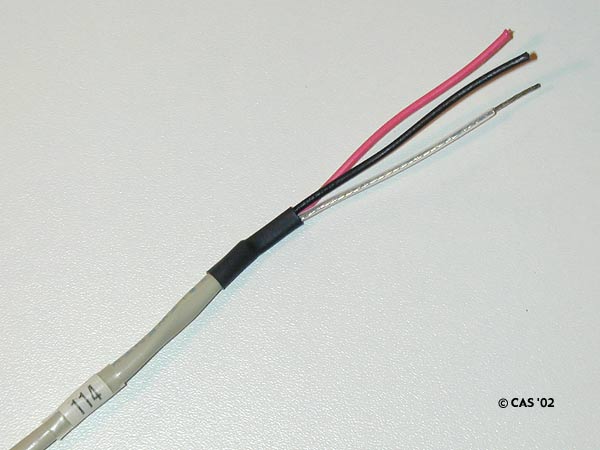

Completed, ready to strip ends.
View 2

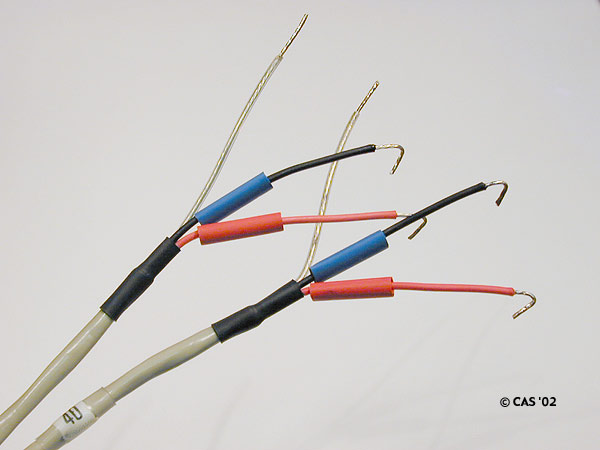

One pair of wires, ready to solder.
Click HERE to see the next step, just before sodering to jacks.
